- Cadre, fourche

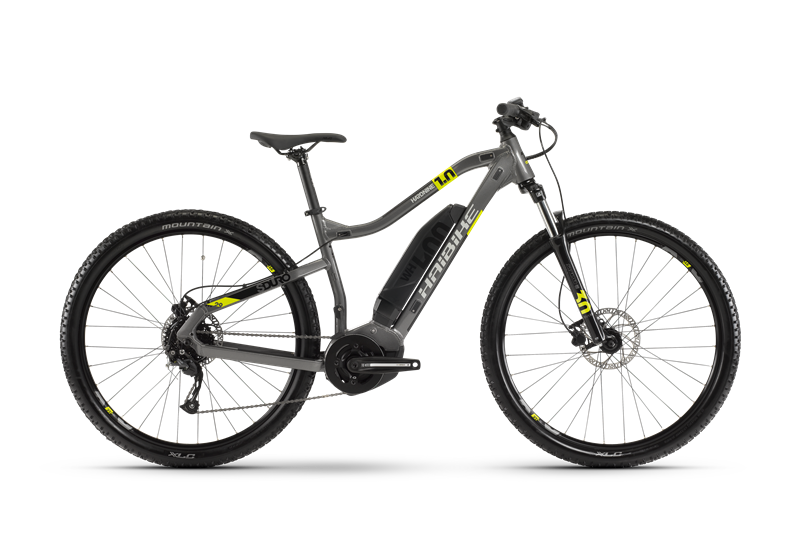

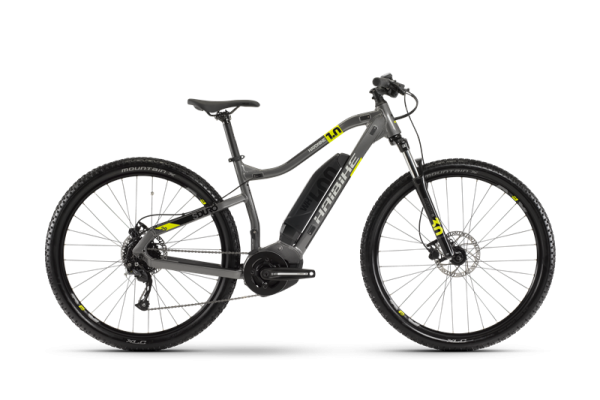

Cadre: Haibike, SDURO HardNine, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Fourche: SR Suntour, XCM DS, Steel spring, Travel= 100 mm, Steel steerer tube 1 1/8″, Quick release 100mm
- Moteur, batterie
Moteur: Yamaha, PW-SE System, 250 W, 70 Nm, 25 km/h
Batterie: Yamaha, Lithium Ion, 400 Wh
Ecran: Yamaha, Side Switch, 1.7″ LCD, 7 functions
- Groupe
Dérailleur arrière: Shimano, Altus M2000
Frein: Tektro, M275, 180 mm, 2-piston disc brake
Manette: Shimano, Altus M2010, Rapidfire, 9 speed
Plateau: Steel, 38 teeth
- Périphériques
Cintre: Haibike Components, TheBar + Topflat, 720 mm
Potence: Haibike Components, The Stem +, A-head
Tige de selle: Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Selle: Haibike Components, TheSaddle
- Pneus, roues
Pneus: XLC, MountainX, 57-622, 29″ x 2.25″
Roues: Rodi, Black Rock 21, avec oeillets, bord creux, Aluminium
Poids: 22.6 kg
