- Cadre, fourche

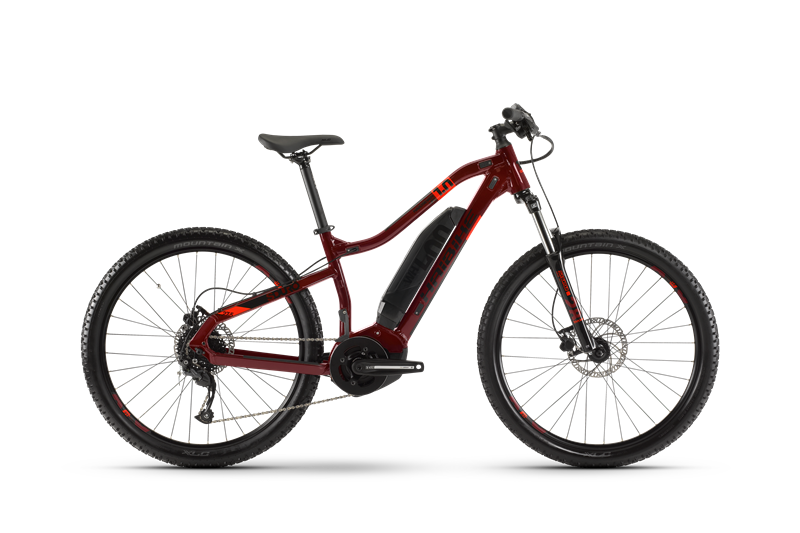

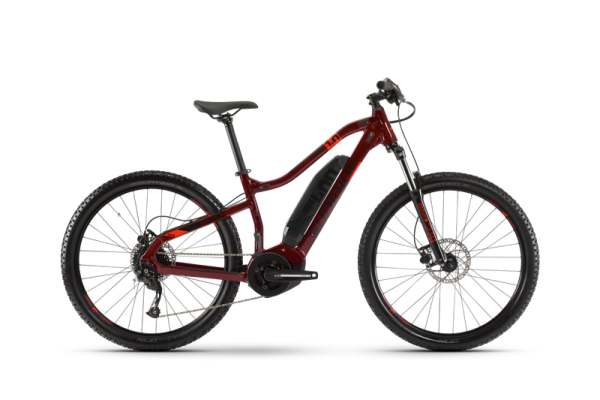

Cadre: Haibike, SDURO HardLife, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Fourche: SR Suntour, XCM DS, Steel spring, Travel= 120 mm, Steel steerer tube 1 1/8″, Quick release 100mm
- Batterie, moteur
Batterie: Yamaha, Lithium Ion, 400 Wh
Moteur: Yamaha, PW-SE System, 250 W, 70 Nm, 25 km/h
Ecran: Yamaha, Side Switch, 1.7″ LCD, 7 functions
- Groupe
Dérailleur arrière: Shimano, Altus M2000
Manette: Shimano, Altus M2010, Rapidfire, 9 speed.
Plateau: Steel, 38 teeth
Freins: Tektro, M276, 180 mm, 2-piston disc brake
- Périphériques
Cintre: Haibike Components, TheBar + Topflat, 720 mm
Potence: Haibike Components, The Stem +, A-head
Tige de selle: Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Selle: Haibike Components, TheSaddle + Lady.
- Roues, pneus
Roues: Rodi, Black Rock 21, with eyelets, hollow rim, Aluminium
Pneus: XLC, MountainX, 57-584, 27.5″ x 2.25″
Poids: 22.4 kg
