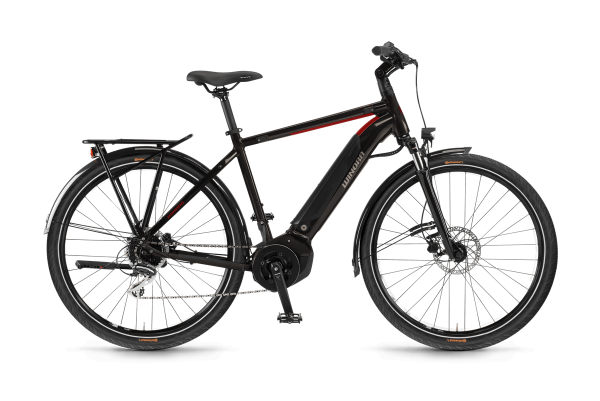

WINORA YUCATAN 9 GENT

• Cadre, fourche

Cadre: Winora, Aluminium 6061, Yamaha InTube, HD Interface, Aluminium 6061

Fourche: SR Suntour, NEX E25-HLO , Lockout, Steel spring, Travel= 63 mm, Aluminium steerer tube 1 1/8″ – 1 1/2″ tapered

---

• Moteur, batterie

Moteur: Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h

Batterie: Yamaha, InTube, 500 Wh

Ecran: Yamaha, Side Switch, 1.7″ LCD, 7 functions

---

• Groupe

Dérailleur arrière: Shimano, Acera T3000

Cassette: Shimano, HG200, 11 – 34 teeth

Manette: Shimano, Altus M2010, Rapidfire, 9 Speed

Freins: Tektro, T275, 180 mm, 2-piston disc brake

Plateau: Steel, 38 teeth

---

• Périphériques

Cintre: Ergoriser, oversize, 640 mm

Potence: Alu, winkelverstellbar, A-head, Bar bore: 31.8 mm

Tige de selle: Aluminium, Patent, 31.6 mm

Selle: Selle Royal, Wave

Eclairage avant: Herrmans, H-Black MR-GO

Eclairage arrière: AXA, Juno Ebike

Porte bagage: Racktime, RT-336, 25.0 kg

Garde boue: SKS, Chromoplastics

Béquille: Ursus, Mooi , Rear stand

---

• Pneus, roues

Pneus: Schwalbe, Ride Tour, 47-622, 28″ x 1.75″

Roues: Ryde, Zac421, hollow rim, Aluminium

---
